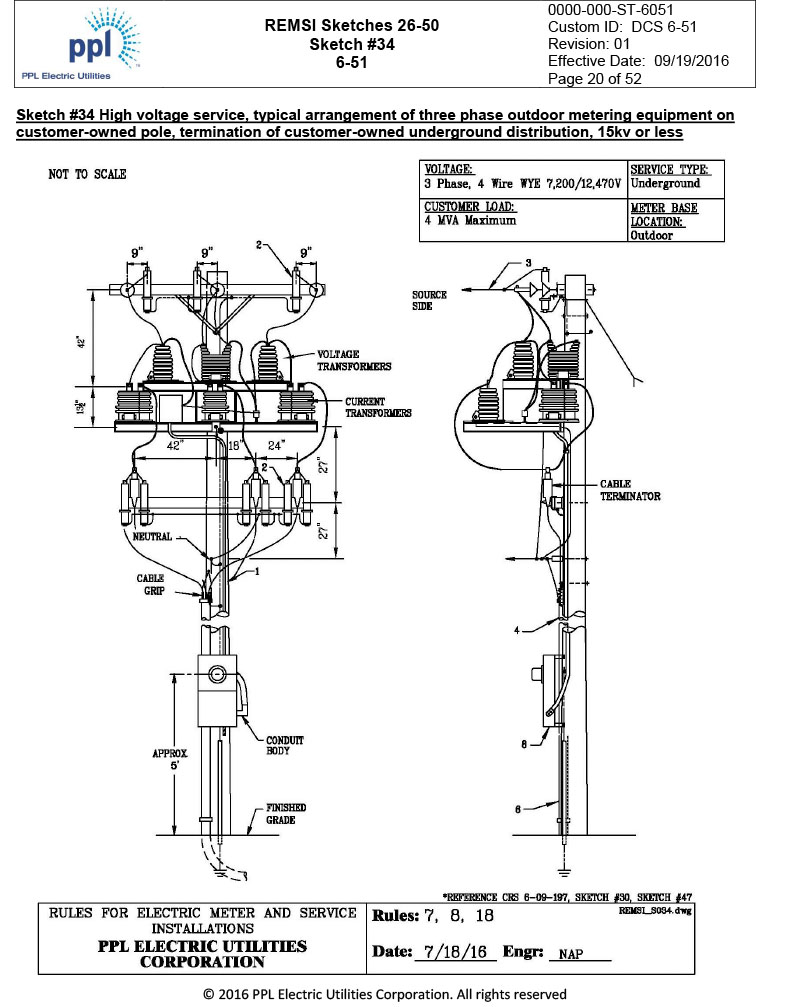

Sketch 34

REFERENCES: SKETCHES 30 & 47 - CRS 6-09-197 - RULES 7, 8, 18

Page 2

go to page 1

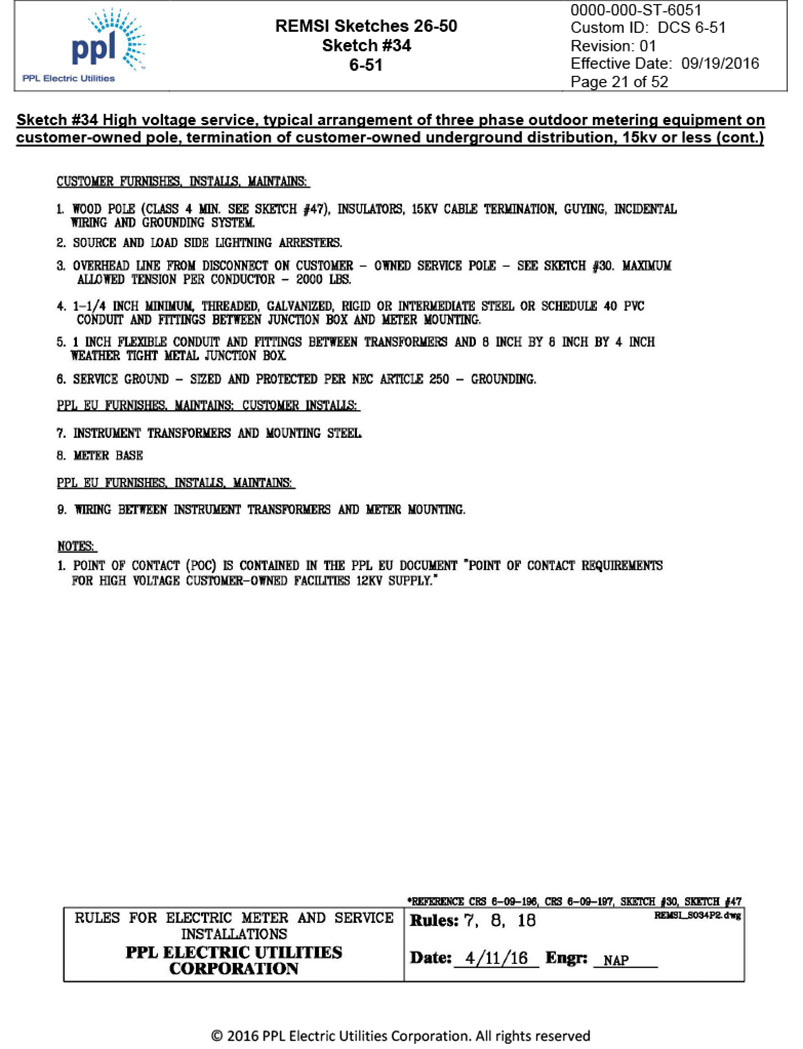

Sketch 34 page 2

REFERENCES: SKETCHES 30 & 47 - CRS 6-09-197 - RULES 7, 8, 18
